Secondary Air Injection Pump Motor -V101-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the coolant expansion tank for the low temperature circuit -1- and move it upward.

Fig 1: Loosen The Coolant Expansion Tank Bolt -1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

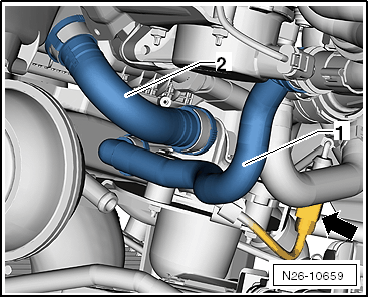

-- Press the release buttons and remove the secondary air injection hoses -1 and 2-. Disconnect the connector -arrow- and free up the cable.

Fig 2: Identifying Secondary Air Injection (Air) Hoses -1 And 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

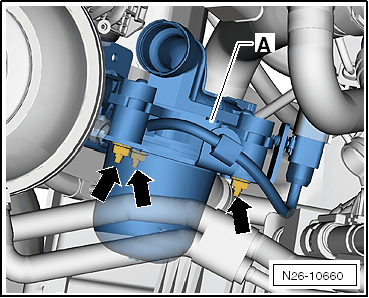

-- Remove the nuts -arrows- and remove the secondary air injection pump upward.

Fig 3: Identifying Nuts -Arrows- And Air Pump Motor, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
