Position Of Double Clamp

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

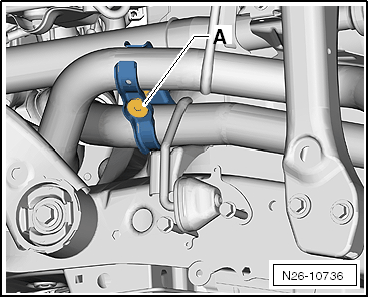

Fig 1: Identifying Position Of Double Clamp
GWWN26-10736Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the double clamp as illustrated and tighten to 20 Nm.
