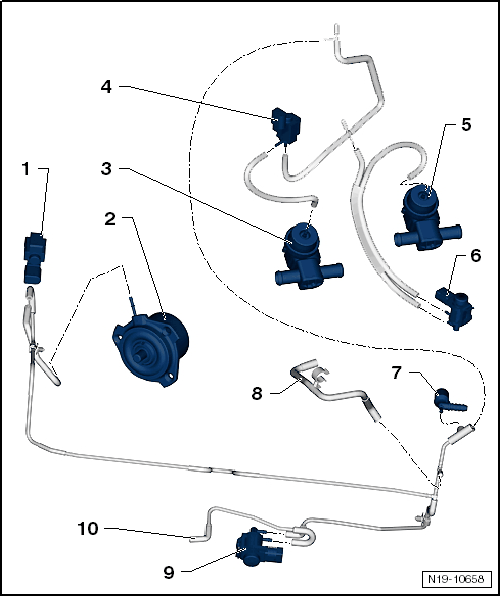

Overview - Vacuum Hoses
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Regulation Valve -N515-
- Coolant Pump
- Check the membrane in the coolant pump for leaks using the : VAS6213
- Cylinder Block Shut-Off Valve
- Cylinder Block Coolant Valve -N545-
- Component location: on the back of the engine
- ATF Pre-Heater Shut-Off Valve
- Cooling Oil Valve -N471-
- Component location: on the top of the transmission
- Vacuum Connection on the Mechanical Vacuum Pump
- To Leak Detection Pump -V144-
- Intake Manifold Runner Control Valve -N316-
- To Vacuum Adjusting Element for Intake Manifold Flap
