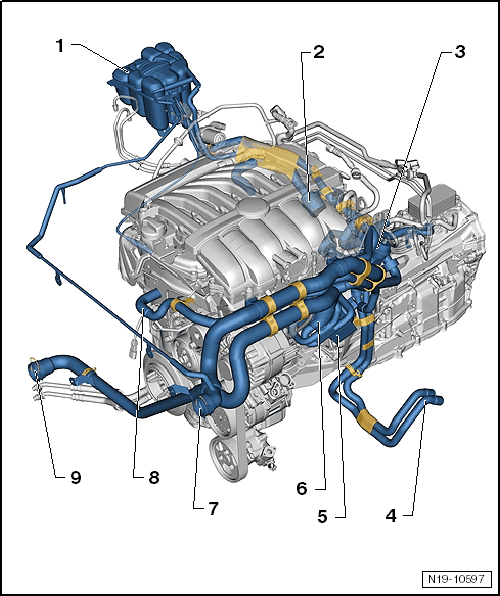

Overview - Coolant System, Part 3
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Replace the O-rings and seals.
Make sure the couplings are tight.
Tightening specifications:
M6 bolts: 10 Nm
M8 bolts: 20 Nm
- Coolant Expansion Tank
- Engine Coolant Circulation Pump 2 -V178-
- Removing and installing. Refer to Engine Coolant Circulation Pump 2 -V178-, REMOVING AND INSTALLING .
- Cylinder Block Shut-Off Valve
- To remove, remove the center plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD .
- Heater Core Hoses
- Engine Oil Cooler
- Coolant Thermostat Housing
- Removing and installing. Refer to COOLANT THERMOSTAT, REMOVING, INSTALLING AND CHECKING .
- Connection
- For the top of the radiator
- Check Valve
- Inside the coolant hose
- Connection
- For the bottom of the radiator
