Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Use a suitable wrench to press the tensioning arm of the tensioning roller in direction of -arrow-.

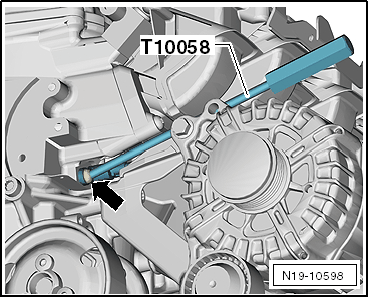

Fig 1: Identifying M8x50 Bolt In Threaded Hole

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw a screw M8 X 50 into threaded hole -A- in the tension-free position.

-- Remove the ribbed belt tensioning roller -arrows-.

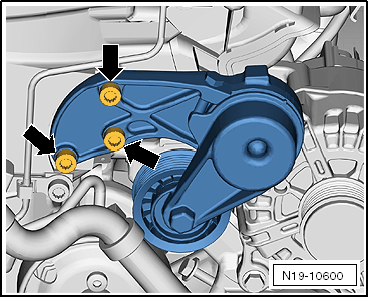

Fig 2: Identifying Belt Tensioner Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the Engine Temperature Control Sensor - G694- connector and free up the wire.

-- Remove the bolt for the Engine Temperature Control Sensor -G694- with the : T10058 .

Fig 3: Identifying Engine Temperature Control Sensor Bolt, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Engine Temperature Control Sensor - G694- out of the cylinder head and remove it toward the front.

CAUTION:

The O-ring and the support washer can get stuck in the cylinder head. Make sure the Engine Temperature Control Sensor - G694- is >>complete<<.

-- The following components must be present at the Engine Temperature Control Sensor -G694-.

Fig 4: Identifying Engine Temperature Control Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Support Washer
O-ring

NOTE:

If the O-ring and the support washer are stuck in the cylinder head, they must be pulled out with a wire. For this purpose bend a wire diameter approx. 1.5 mm that is slightly bent at the end.
