Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Throttle Valve Control Module -J338-. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .

-- Remove the wiper arms. Refer to WINDSHIELD WIPER SYSTEM .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER .

-- Remove the center plenum chamber bulkhead. Refer to PLENUM CHAMBER COVER .

-- Disconnect the connector from the pump.

-- Remove the nut -A- and the pump bracket -arrows- from the cover.

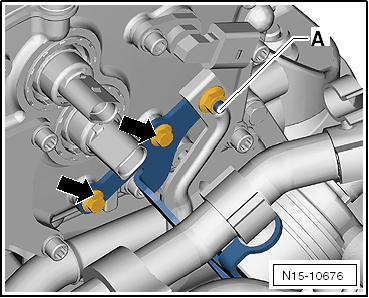

Fig 1: Identifying Nut -A- Bolts -Arrows- And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the coolant hoses from the pump and remove them.

-- Remove the pump from the bracket.
