Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to Noise Insulation .

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

NOTE:

For removal of the coolant pump, the belt pulley can remain installed.

-- Remove coolant pump bolts through holes in belt pulley -arrows- and remove coolant pump.

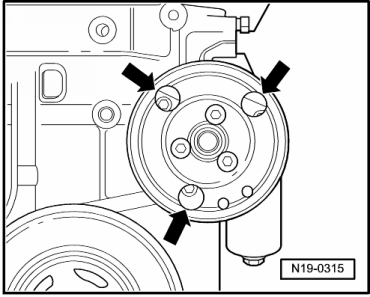

Fig 1: Identifying Coolant Pump Bolt Holes In Belt Pulley

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If coolant pump must be replaced:

-- Remove coolant pump belt pulley. To do so, counterhold belt pulley using a drift (standard).
