Overview - Radiator And Radiator Fan

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

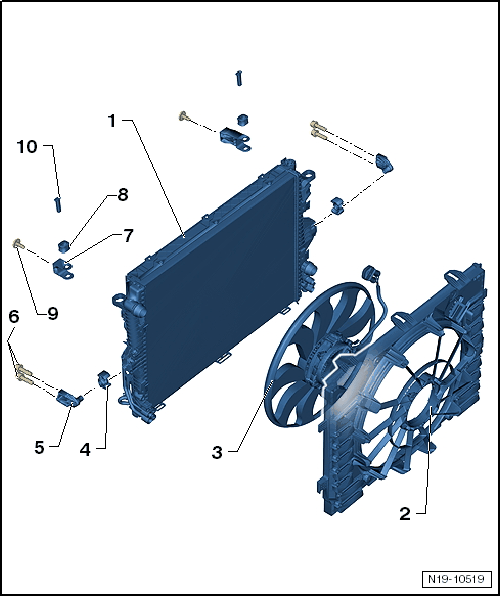

Fig 1: Exploded View Of Fan Shroud And Radiator With Components
GWWN19-10519Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radiator
    • With ATF cooler and condenser
  2. Fan Shroud
  3. Coolant Fan -V7-
    • Remove with fan shroud.
  4. Rubber Bushing
    • For the radiator mount
  5. Lower Radiator Mount
  6. Bolts
    • 25 Nm
  7. Upper Radiator Mount
  8. Rubber Bushing
    • For the radiator mount
  9. Bolt
    • 5 Nm
  10. Locking Bolt
