Fan Shroud With Coolant Fan, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the clamp -2- and remove the hose from the left charge air pipe.

Fig 1: Air Guide Hoses, Remove/Install

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the charge air pipes and the coolant lines from the fan shroud.

-- Remove the upper charge air pipes from the left charge air cooler.

-- Disconnect the connector from the fan shroud and free up the wires.

-- Push the clips in direction of -arrows- in on both sides of the shroud and remove the fan shroud upward.

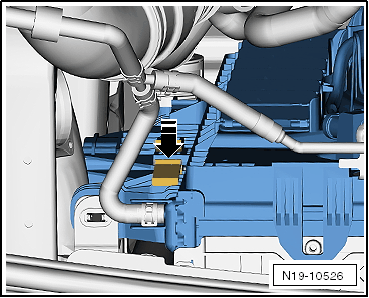

Fig 2: Locating Fan Shroud Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
