Engine Coolant Temperature Sensor -G62-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The engine is cold.

-- Briefly open the coolant reservoir cap to reduce the residual pressure in the coolant system.

-- Carefully pull the engine cover off the four bolts one after the other.

-- Remove the air guide hose by loosening the hose clamps -arrows-.

Fig 1: Air Guide Pipe, Remove/Install

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct hose connection -item 14- OVERVIEW - TURBOCHARGER .

-- Disconnect the connector -arrow- from the Engine Coolant Temperature Sensor -G62-.

Fig 2: Identifying Connector -Arrow- To Engine Coolant Temperature (ECT) Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine Coolant Temperature Sensor -G62-

-- Disconnect the connector -1- from the Engine Coolant Temperature Sensor -G62-.

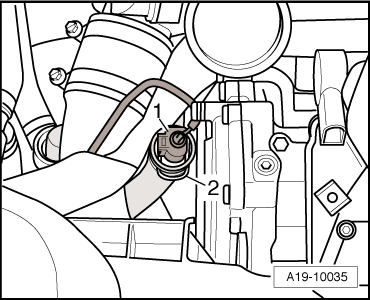

Fig 3: Engine Coolant Temperature Sensor -G62-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip -2- and the Engine Coolant Temperature Sensor -G62-.
