Special Tool
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- SUBARU SELECT MONITORSPECIAL TOOL DESCRIPTION CHART
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 1B022XU0 SUBARU SELECT MONITOR III KIT Used for setting of each function and troubleshooting for electrical system. - TEST HARNESS ABTEST HARNESS AB REFERENCE CHART
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA000 TEST HARNESS AB Used when measuring voltage and resistance of occupant detection system. - TEST HARNESS AETEST HARNESS AE REFERENCE CHART
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA030 TEST HARNESS AE - Used for diagnosing seat belt tension sensor.
- Used together with test harness Y.
- TEST HARNESS AGTEST HARNESS AG REFERENCE CHART

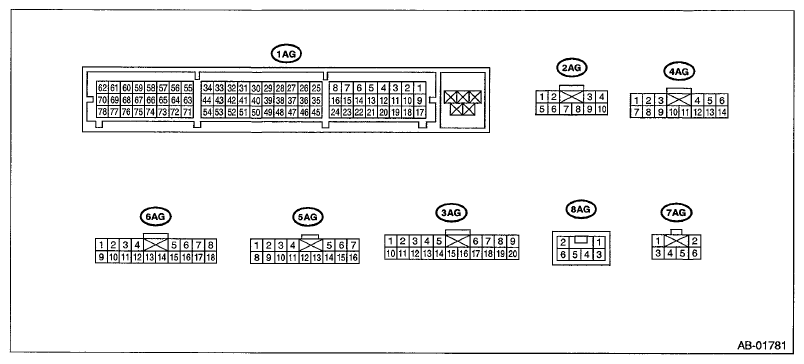

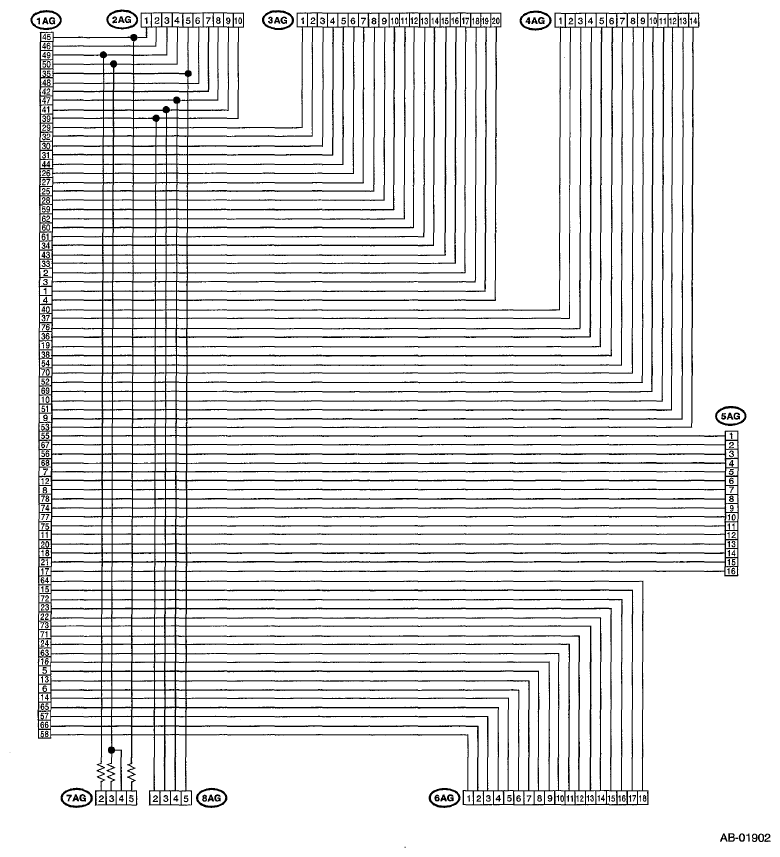

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG070 TEST HARNESS AG Used when measuring voltage and resistance of airbag control module. - TEST HARNESS YTEST HARNESS Y REFERENCE CHART
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG040 TEST HARNESS Y Used for troubleshooting seat belt buckle switch. - AIRBAG RESISTORAIRBAG RESISTOR REFERENCE CHART
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299PA040 AIRBAG RESISTOR Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.
