Right Radiator For Charge Air Cooling Circuit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

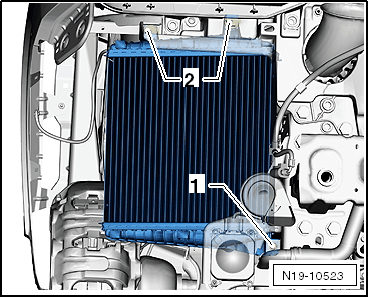

-- Slightly pry off the mounting tabs -1 and 2- and remove the air shroud in the direction of the -arrow-.

Fig 1: Slightly Pry Off The Tabs -1 And 2- And Remove The Air Shroud In The -Direction Of The Arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

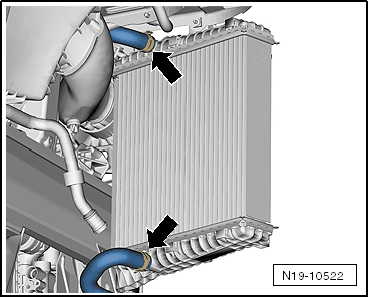

-- Remove the lower coolant hose -1- and drain the coolant. Remove the upper coolant hose.

Fig 2: Identifying Upper And Lower Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

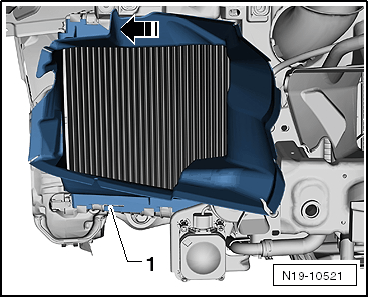

-- Slightly pry off the mounting tab -1- and remove the air shroud in the direction of the -arrow-.

Fig 3: Slightly Pry Off The Tab -1- And Remove The Air Shroud In The -Direction Of The Arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

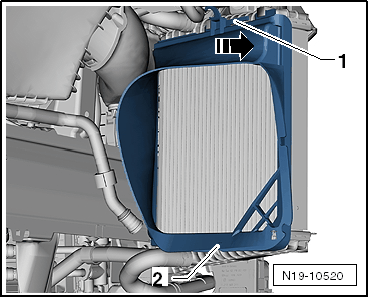

-- Remove the coolant pipe -1- and remove the radiator bolt. Remove the bolts -2- and then the radiator.

Fig 4: Locating Coolant Pipe -1- And Radiator Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
