Fan Shroud, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

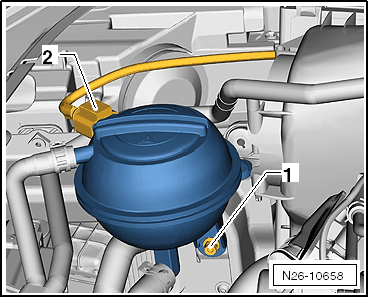

-- Loosen the coolant expansion tank for the low temperature coolant circuit -1-, remove the connector -2- and move the coolant expansion tank upward.

Fig 1: Loosen The Coolant Expansion Tank Bolt -1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

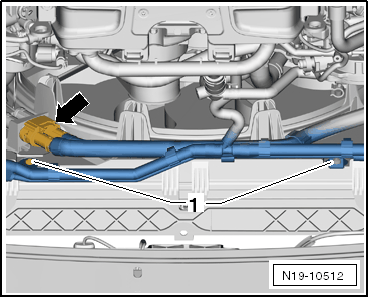

-- Remove the coolant pipe bolts -1- from the fan shroud. Disconnect the connector -arrows- and unclip the cable.

Fig 2: Disconnect The Connector -Arrows- And Unclip The Wire.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the clips in direction of -arrows- in on both sides of the shroud and remove the fan shroud upward.

Fig 3: Locating Fan Shroud Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
