Overview - Coolant System, High Temperature
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Engine Temperature Control Sensor -G694-, Removing and installing. Refer to Engine Temperature Control Temperature Sensor -G694-, REMOVING AND INSTALLING .
Replace the O-rings and seals.
Make sure the couplings are tight.
Tightening specifications:
M6 bolts: 10 Nm
M8 bolts: 20 Nm

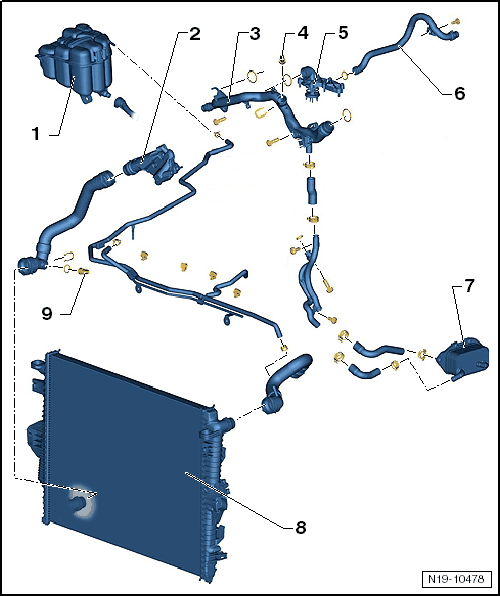

- Coolant Expansion Tank
- Connection
- Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Engine Coolant Temperature Sensor -G62-
- Coolant Thermostat
- Upper Coolant Pipe
- Removing and installing. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .
- Engine Oil Cooler
- Coolant Cooler
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
