Overview - Coolant System Electro-Drive Drive Motor

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Replace the O-rings and seals.

Make sure the couplings are tight.

Tightening specifications:

M6 bolts: 10 Nm

M8 bolts: 20 Nm

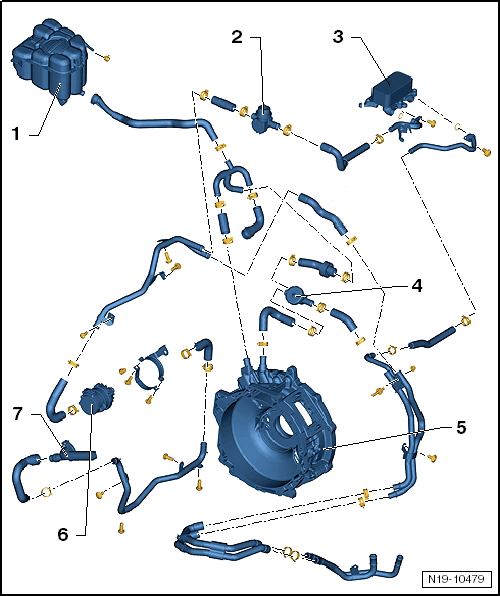

Fig 1: Electro-Drive Drive Motor -V141 Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Expansion Tank
ATF Pre-Heater Shut-Off Valve
- If the Cooling Oil Valve -N471- is activated. Cooling Oil Valve -N471- component location: above the transmission, near the ATF pre-heater.
ATF Pre-Heater
Drive Motor Shut-off Valve for Coolant System
- If the Electric Drive Coolant Valve -N565- is activated. Component location. Refer to Figure.
Electro-Drive Drive Motor
High Temperature Circuit Coolant Pump -V467-
Connection
