Connection Diagram - Coolant Hoses, Low Temperature

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Secure all hose connections with hose clamps that are specific to that model. Refer to the Parts Information.

The arrows on the coolant pipes and ends of coolant hoses must align.

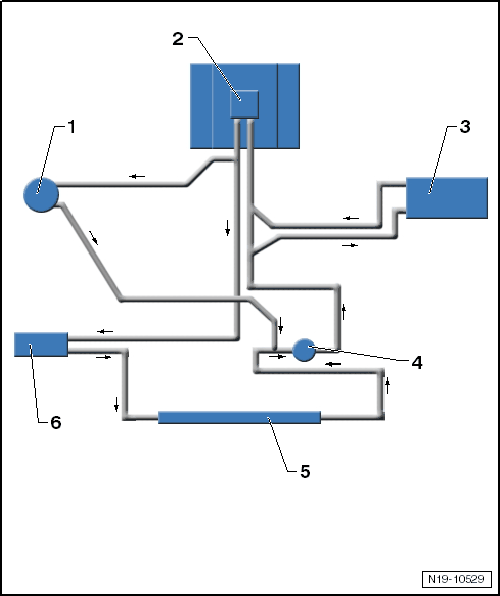

Fig 1: Identifying Low Temperature Circuit
GWWN19-10529Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Coolant Expansion Tank
  2. Charge Air Cooler
    • In supercharger housing
  3. Electric Drive Power and Control Electronics -JX1-
  4. Low Temperature Circuit Coolant Pump -V468-
  5. Center Radiator for Low Temperature Coolant Circuit
  6. Right Radiator for Low Temperature Coolant Circuit
