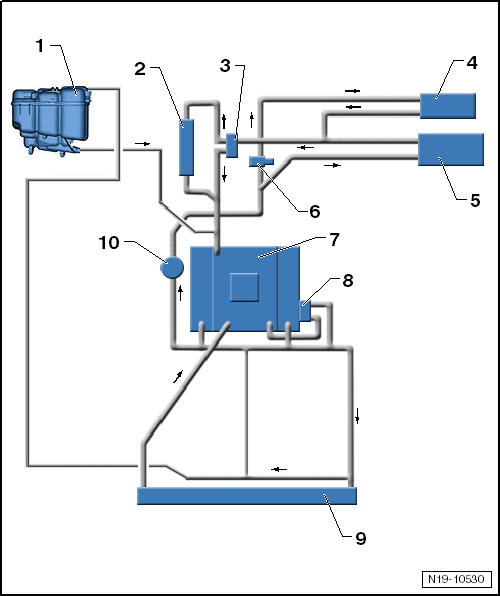

Connection Diagram - Coolant Hoses, High Temperature
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Secure all hose connections with hose clamps that are specific to that model. Refer to the Parts Information.
The arrows on the coolant pipes and ends of coolant hoses must align.
- Coolant Expansion Tank
- Electro-Drive Drive Motor
- Drive Motor Shut-Off Valve for Coolant System
- If the Electric Drive Coolant Valve -N565- is activated. Component location. Refer to Figure.
- ATF Pre-Heater
- Heater Core for the Heater
- Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- ATF Pre-Heater Shut-Off Valve
- If the Cooling Oil Valve -N471- is activated. Cooling Oil Valve -N471- component location: above the transmission, near the ATF pre-heater.
- Engine
- Engine Oil Cooler
- Coolant Cooler
- With ATF cooler and condenser
- High Temperature Circuit Coolant Pump -V467-
