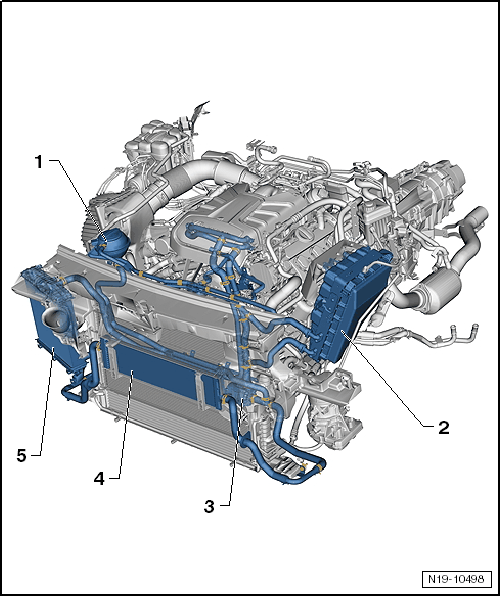

Component Location Overview - Low Temperature Coolant Circuit
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Expansion Tank
- For low temperature
- Electric Drive Power and Control Electronics -JX1-
- Low Temperature Circuit Coolant Pump -V468-
- Center Radiator for Low Temperature Coolant Circuit
- For charge air cooling
- For electric drive power and control electronics
- Removing and installing. Refer to CENTER RADIATOR FOR CHARGE AIR COOLING CIRCUIT, REMOVING AND INSTALLING .
- Right Radiator for Low Temperature Coolant Circuit
- For charge air cooling
- For electric drive power and control electronics
- Removing and installing. Refer to RIGHT RADIATOR FOR CHARGE AIR COOLING CIRCUIT, REMOVING AND INSTALLING .
