Component Location Overview - High Temperature Coolant Circuit

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

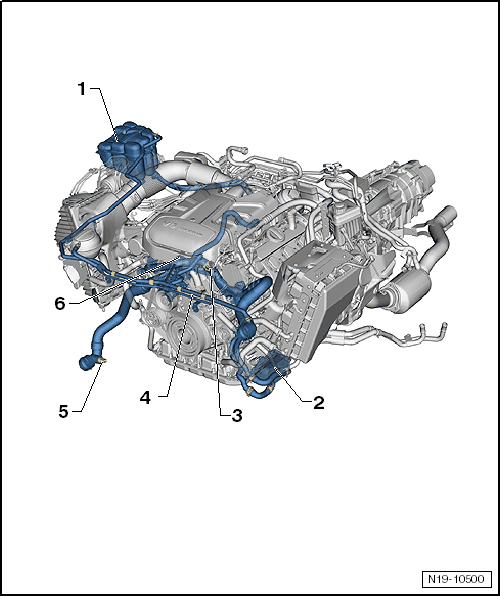

Fig 1: High Temperature Circuit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Expansion Tank
Engine Oil Cooler
Engine Coolant Temperature Sensor -G62-
Coolant Pump
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
Coolant Thermostat

Engine Temperature Control Sensor -G694-, Removing and installing. Refer to Engine Temperature Control Temperature Sensor -G694-, REMOVING AND INSTALLING .
