Component Location Overview - Electro-Drive Drive Motor: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

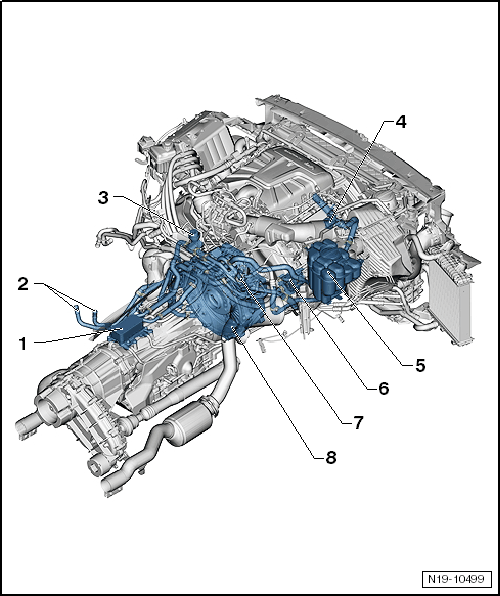

- ATF Pre-Heater
- To the Heater Core for the Heater
- ATF Pre-Heater Shut-Off Valve
- If the Cooling Oil Valve -N471- is activated, Cooling Oil Valve -N471- component location: above the transmission, near the ATF pre-heater.
- Coolant Pump
- Coolant Expansion Tank
- High Temperature Circuit Coolant Pump -V467-
- Drive Motor Shut-off Valve for Coolant System

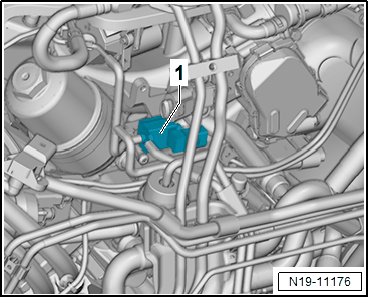

- If the Electric Drive Coolant Valve -N565- is activated. Component location. Refer to Figure.
- Electro-Drive Drive Motor
