Engine Temperature Control Temperature Sensor -G694-, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the compressor. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Remove the connector -arrow- and remove the Engine Temperature Control Sensor -G694-.

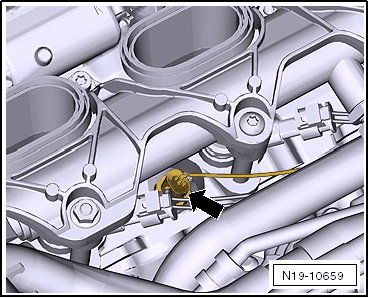

Fig 1: Engine Temperature Control Sensor -G694-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
