Low Temperature Circuit Coolant Pump -V468-, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant for the low temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, LOW TEMPERATURE CIRCUIT .

-- Disconnect the connector -1- and remove the coolant hoses -2-.

-- Remove the bolts -arrows- and remove the mounting strap.

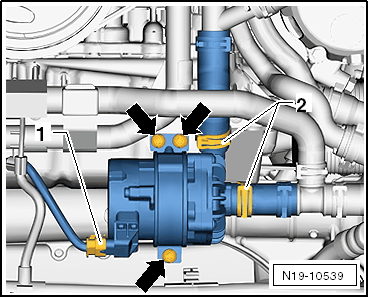

Fig 1: Disconnect The Connector -1- And Remove The Coolant Hoses -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
