High Temperature Circuit Coolant Pump -V467-, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Reduce pressure by covering the coolant reservoir cap with a cloth and carefully opening.

-- Open the coolant reservoir cap.

-- Remove the noise insulation. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

-- Drain the coolant for the high temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, HIGH TEMPERATURE CIRCUIT .

-- Remove the right front wheel.

NOTE:

Loosening the tie rod improves accessibility.

-- Loosen nut of track rod ball joint, but do not unscrew yet.

Fig 1: Loosen Nut Of Track Rod Ball Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

To protect thread, screw nut on pin a few turns.

-- Remove the tie rod from the wheel bearing housing using the Puller - Ball Joint:T10187 and remove the nut.

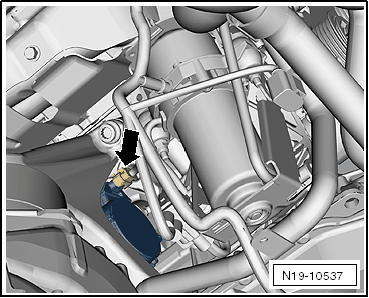

-- Remove the connector -arrow- from the pump.

Fig 2: Disconnect The Connector -Arrow- From The Pump.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Shop Crane - Drip Tray:VAS6208 under engine.

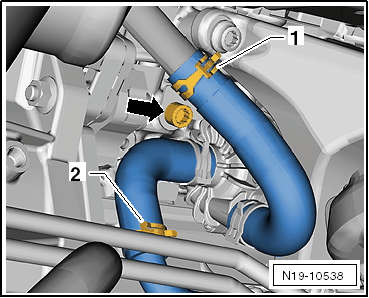

-- Remove the coolant hoses -1 and 2- and let the remaining coolant drain.

-- Remove the bolt -arrow- and then remove the coolant pump.
