Coolant Pump, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the left front coolant pipes and move them to the side. Refer to COOLANT PIPES FOR LOW TEMPERATURE COOLANT CIRCUIT, REMOVING AND INSTALLING . The coolant hoses can remain attached.

-- Remove the supercharger ribbed belt.

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the bolts for the coolant pump ribbed belt pulley by counterholding with a Wrench - Pin Type:3212 .

Fig 1: Remove The Bolts For The Coolant Pump Pulley, Use 3212 To Counterhold.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ribbed belt pulley.

NOTE:

Place a cleaning cloth underneath to catch any escaping coolant.

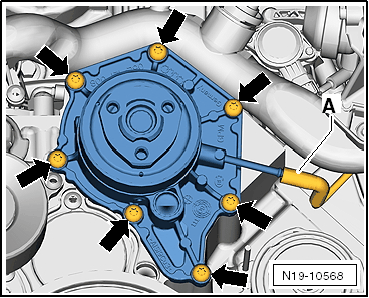

-- Remove the hose -A- and remove the bolts -arrows-. Remove the coolant pump.

Fig 2: Identifying Hose -A-, Bolts -Arrows- And Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
