Upper Coolant Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant for the high temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, HIGH TEMPERATURE CIRCUIT .

-- Remove the compressor. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

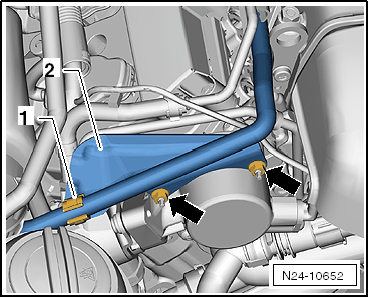

-- Unclip the line -1-. Remove the nuts -arrows- and remove the protective plate -2-.

Fig 1: Unclip The Line -1-. Remove The Nuts -Arrows- And The Shield -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right lower section of the intake manifold. Refer to INTAKE MANIFOLD LOWER SECTION WITH FUEL RAIL, REMOVING AND INSTALLING .

-- Remove the front secondary air injection hose -arrow- from its bracket and disconnect it; do to so press the release buttons.

Fig 2: Identifying Front Air Hose -Arrow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the hose for the secondary air and vacuum hoses and move them to the side.

Fig 3: Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Fuel system is under pressure.

Risk of injury from fuel spraying out.

Wear protective eyewear.
Wear safety gloves.
Reduce the pressure: Lay clean cloths around the connection point -1- and carefully open the connection point.

NOTE:

Place a cleaning cloth underneath to catch any escaping coolant.

-- Remove the threaded connection -1- as well as the union nut -3-.

-- Remove the bolts -arrows- on the retaining plates and the high pressure pipe.

-- Remove the coolant hose -2- from the coolant pipe.

-- Remove the bolt -1- and remove the coolant pipe back out of the cylinder block in direction of -arrow-.
