Front Coolant Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant for the high temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, HIGH TEMPERATURE CIRCUIT .

-- Remove the supercharger ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the front left coolant pipes. Refer to COOLANT PIPES FOR LOW TEMPERATURE COOLANT CIRCUIT, REMOVING AND INSTALLING .

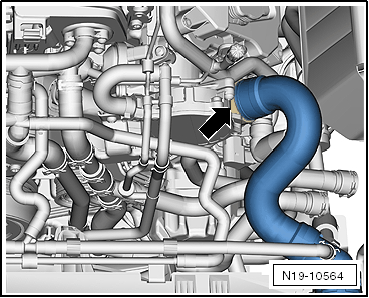

-- Remove the coolant hose -arrow- from the front coolant pipe by lifting the retaining clamp.

Fig 1: Identifying Coolant Hose -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

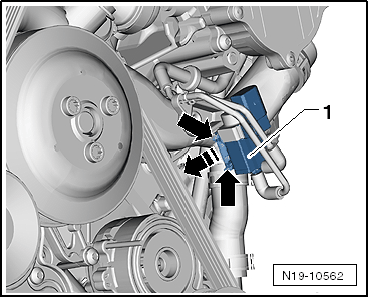

-- Press the locking mechanism -arrows- together and remove the Coolant Regulation Valve -N515- -1- in direction of.

Fig 2: Squeeze The Locking Mechanism -Arrows

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

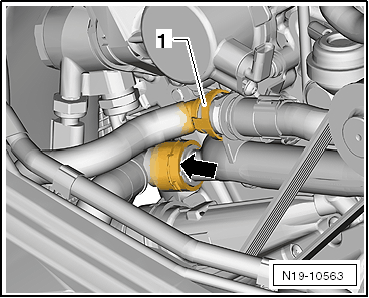

-- Disconnect the secondary air hose -1- and coolant hose -arrow-.

Fig 3: Identifying Secondary Air Injection (Air) Hose -1- And Coolant Hose -Arrow-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

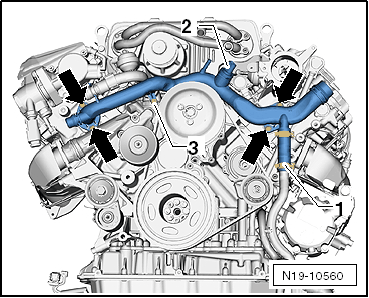

-- Loosen the hose clamp -1- and disconnect the connector -2- from the Engine Coolant Temperature Sensor -G62-.

-- Remove the bolt -3- and the bolts -arrows-.

-- Move the coolant pipe forward and remove it upward from the engine.

Fig 4: Loosen The Clamp -1- And Disconnect The Connector -2- From The Engine Coolant Temperature (Ect) Sensor -G62-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
