Coolant Pipes For Low Temperature Coolant Circuit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the front engine cover -1- upward.

Fig 1: Engine Cover -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION .

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Drain the coolant for the low temperature coolant circuit. Refer to COOLANT, DRAINING AND FILLING, LOW TEMPERATURE CIRCUIT .

-- Disconnect the coolant hoses -arrows- and remove the upper coolant hose -1- from the brackets.

Fig 2: Coolant Hoses -Arrows

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

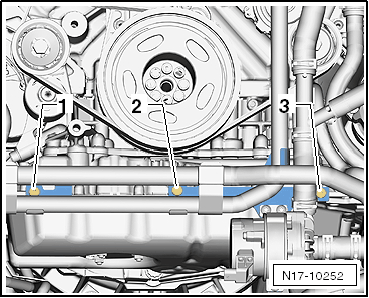

-- Remove the bolts for the coolant pipes -1 through 3-.

Fig 3: Locating Coolant Pipe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

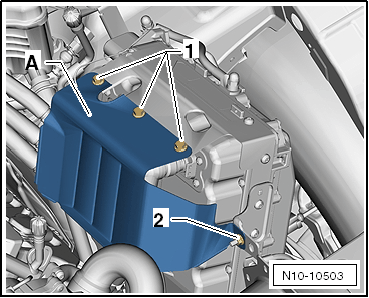

-- Remove the bolts -1 and 2- and remove the cover plate for the high voltage connection -A-.

Fig 4: Cover Panel -A- And Bolts -1 And 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

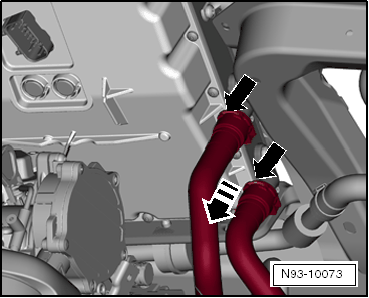

-- Open the retainers for both quick-release couplings -arrows- and remove the coolant lines in direction of -arrow-.

Fig 5: Locating Quick-Release Couplings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

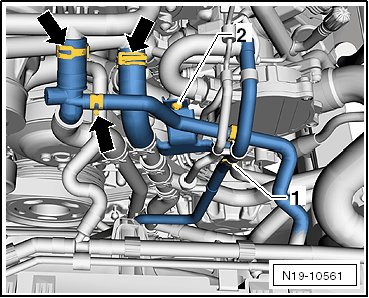

-- Loosen the vacuum pipe -1- from the bracket. Remove the bolt -2- and remove the coolant hoses -arrows-.

-- Remove the coolant pipes with the hoses downward.

Fig 6: Loosen The Vacuum Pipe -1-. Remove The Bolt -2- And The Coolant Hoses -Arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
