Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A/C compressor. Refer to A/C COMPRESSOR .

-- Remove the power steering fluid reservoir and move it to the side.

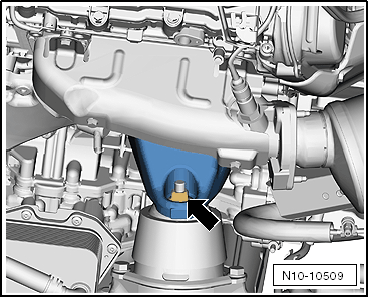

-- Remove the engine mount nut -arrow- .

Fig 1: Identifying Engine Mount Bracket Bolt

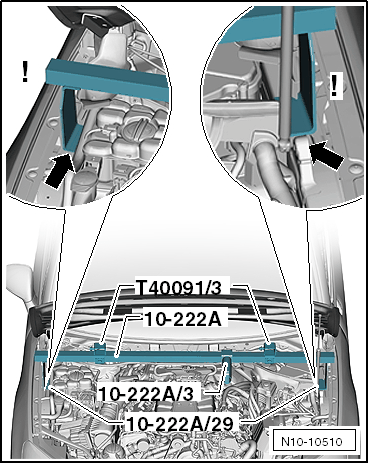

-- Slide the Engine Support - Basic Set - Moveable Joints:T40091/3 as well as the Engine Support Bridge - Engine Support 3:10-222A/3 onto the square pipe of the Engine Support Bridge:10-222A .

Fig 2: Identifying Engine Support Bridge 10 - 222A, Installation

-- >>Flip up<< the right and left plenum chamber cover.

-- Mount the Engine Support Bridge - Engine Support 29:10-222A/29 onto the square pipe.

-- Position the engine support bridge as illustrated.

CAUTION:

Do not mount the engine support bridge on the metal tabs -arrows- .

-- Push the Engine Support - Supplement Kit - Moveable Joint:T40093/4 and Engine Support Bridge - Engine Support 28:10-222A/28 onto the Engine Support - Basic Set - Square Pipe:T40091/1 .

Fig 3: Identifying Engine Support Basic Set T40091 (1 Of 3)

-- Place the Engine Support Bridge - Engine Support 28:10-222A/28 on the longitudinal member and slide the Engine Support - Basic Set - Square Pipe:T40091/1 into the Engine Support - Basic Set - Moveable Joint:T40091/3 .

-- Repeat the procedure on the other side of the vehicle.

-- Slide the Engine Support - Basic Set - Rail with Holes:T40091/2 through the Engine Support - Supplement Kit - Moveable Joint:T40093/4 on one side.

Fig 4: Identifying Engine Support Basic Set T40091 (2 Of 3)

-- Slide the Engine Support - Supplement Kit - Mount:T40093/5 onto the Engine Support - Basic Set - Rail with Holes:T40091/2 and then the rail with holes into the moveable joint on the other side.

-- Install the locking pin and secure it with a splint.

-- Tighten all threaded connections on the engine support bridge hand-tight.

-- Secure the two threaded spindles on the left lifting eyes as shown.

Fig 5: Identifying Engine Support Basic Set T40091 (2 Of 3)

-- Lift the engine evenly by both spindles until the engine mount threaded pins are >>free<< .

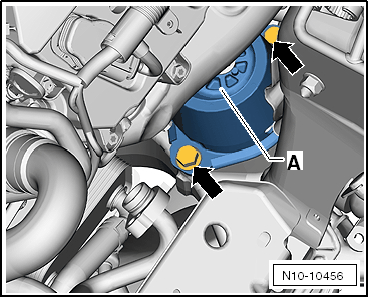

-- Remove the bolts for the engine mount -arrows- . Remove the engine mount.

Fig 6: Identifying Engine Mount Bolts
