Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A/C compressor from the engine.

-- Engage the Engine Sling:2024A on the engine lifting eyes and on the shop crane as shown in the illustration.

Fig 1: Identifying 2024 A, Installation

NOTE:

To be aligned to the center of gravity of the engine assembly, the rail with holes of the lifting hook must be inserted as shown in the illustration.

WARNING:

There is the risk of an accident.

The engine may be transported only in the manner described and without the transmission.
Lifting hooks and pins on the engine sling must be secured with securing pins -arrows- .

-- Tension the engine slightly with shop crane, do not raise.

-- Remove the nuts from the right and left engine mounts -arrow- .

Fig 2: Identifying Engine Mount Nuts

-- Remove the Scissor Lift Table - Q7 Set - Articulated Joint Support :VAS6131/13-7 from the engine.

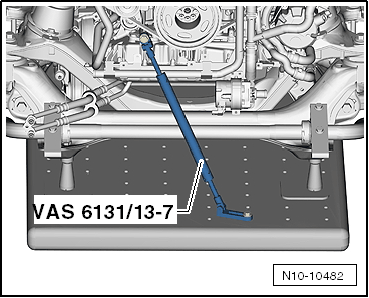

Fig 3: Identifying Articulated Joint Support VAS 6131/13-7, Installation

-- Raise the engine from the engine support.

-- Remove the bolts -arrows- and the left engine support.

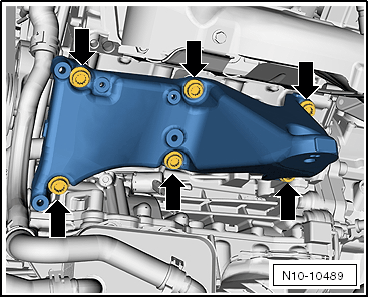

Fig 4: Identifying Left Engine Mount Bracket Bolts

-- Remove the bolts -arrows- and the right engine support.

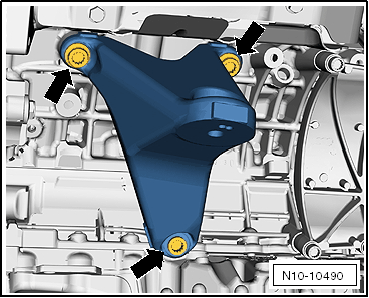

Fig 5: Identifying Right Engine Mount Bracket Bolts

-- Attach the engine using the Engine/Transmission Holder - V6 FSI Bracket:VAS6095/1-5 to the Engine and Gearbox Bracket:VAS6095A and tighten to 40 Nm, as shown in the illustration.

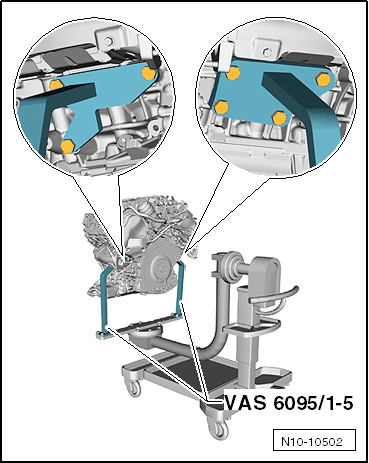

Fig 6: 6095/1-5
