Connecting The Engine And Electro-Drive Drive Motor With Transmission:
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Conditions:
- Needle bearing in the crankshaft was replaced.
- Engine and transmission with the electro-drive drive motor are positioned on the Scissor Lift Table:VAS6131B as when separating.
- Alignment bushings are present in the engine.
- Hydraulic pipe for the clutch mechanism secured with cable ties in its installation position.
-- Thinly coat the drive axle splines with Lubricating Grease:N 052 530 .
-- Coat the pin -1- thinly with Lubricating Grease:N 052 530 .

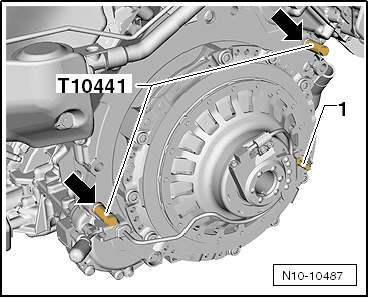

-- Install the Electric Drive Unit Guide Pins:T10441 in the engine.
-- Align the electro-drive drive motor with the centering pins. Check if the input shaft is centered in front of the release bearing.
-- Slide the electro-drive drive motor onto the engine. If necessary, correct the installation position of the transmission.
-- Evenly install the electro-drive drive motor and engine.
