Assembling

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Replace the bolts.

-- Check if the alignment bushings -arrows- are present in the electro-drive drive motor.

Fig 1: Alignment Sleeves -Arrows

-- Pay attention to the installation position of the bolts -1- in the torque converter -2- .

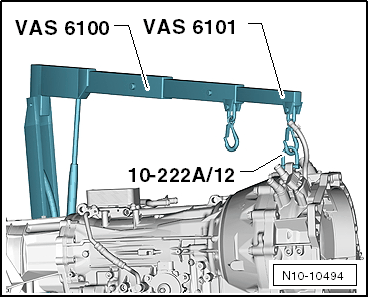

-- Position the electro-drive drive motor as shown on the transmission using the Shop Crane:VAS6100 .

Fig 2: Identifying Electro-Drive Drive Motor

-- Tighten the bolts -1 through 10- connecting the transmission to the electro-drive drive motor.

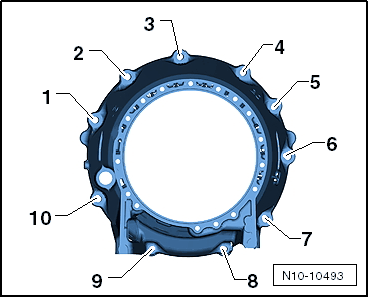

Fig 3: Bolt Tightening Sequence

Tightening specification: 30 Nm + 90° additional turn Replace the bolts.

-- Tighten the three nuts for the torque converter -arrow- through the opening in the transmission. To do so, turn the input shaft an additional 120°. Insert the cap -1- .

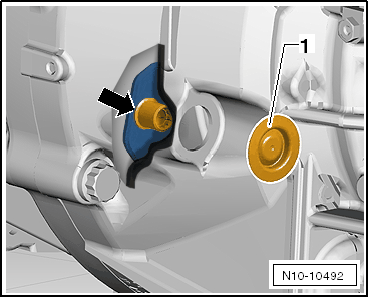

Fig 4: Cap And Torque Converter Bolts

Tightening specification: 60 Nm
