Overview - SUBFRAME

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

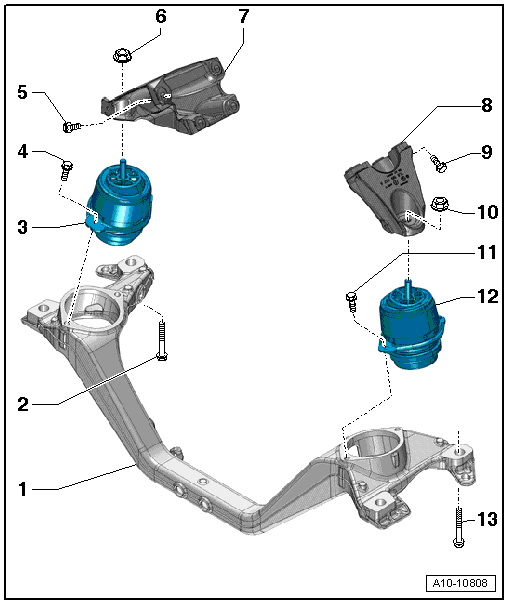

Fig 1: Exploded View Of Subframe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Bolt
- 120 Nm + 180° (¹ /₂ turn)
- Replace
Right Engine Mount
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 60 Nm
Bolt
- 50 Nm + 90° (¹ /₄ ) additional turn
- Replace
Nut
- 75 Nm
Right Engine Support
Left Engine Support
Bolt
- 50 Nm + 90° (¹ /₄ ) additional turn
- Replace
Nut
- 75 Nm
Bolt
- 60 Nm
Left Engine Mount
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 120 Nm + 180° (¹ /₂ turn)
- Replace
