Overview - SUBFRAME Mount

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

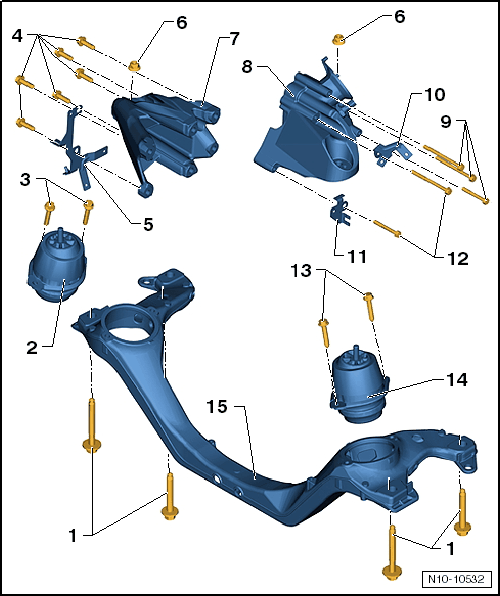

Fig 1: Engine Carrier, Engine Mount And Bracket Overview
GWWN10-10532Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Engine Support Bolts
    • 120 Nm + 180° turn
    • Always replace
  2. Right Engine Mount
  3. Bolt
    • 60 Nm
  4. Bolt
    • 40 Nm
  5. Wiring Bracket
  6. Bolt
    • 75 Nm
  7. Right Engine Support
  8. Left Engine Support
    • With oil filter housing
  9. Bolt
    • 25 Nm
  10. Wiring Bracket
  11. Wiring Bracket
  12. Bolt
    • 25 Nm
  13. Bolt
    • 60 Nm
  14. Left Engine Mount
  15. Engine Support
