Engine Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

-- Remove the nuts from the right and left engine mounts -arrow-.

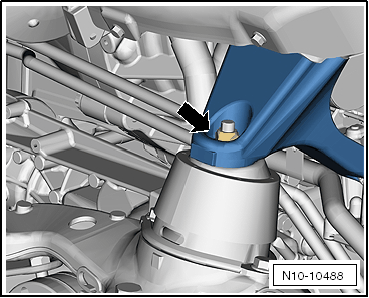

Fig 1: Identifying Engine Mount Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the engine evenly by both spindles until the engine mount threaded pins are >>free<<.

-- Remove the bolts from the engine mount. Remove the engine mount.
