Relay And Fuse Carrier 2 -SR2-, Removing And Installing, LHD: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always follow the procedure in the service information when disconnecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

NOTE:

It is necessary to remove the fuse panel on the driver side because there is a wiring harness behind it. The wires can remain connected to the fuse panel.

-- Remove the fuse panel on the driver side. Refer to FUSE HOLDER, REMOVING AND INSTALLING .

-- Remove the footwell cover on the driver side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Remove the screw -arrow-.

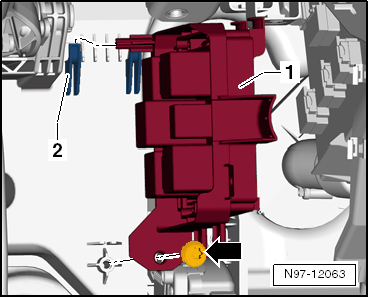

Fig 1: Identifying Bracket -1-, Mounting -2- And Screw -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the bracket from the mounting -2- and remove the relay carrier together with the bracket -1-.
