Connection And Junction Box 2 -SX2- Inside Plenum Chamber On Left Side, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When disconnecting and connecting the battery, always perform the work procedure as described in the service information. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the wiper arm. Refer to WIPER ARMS, REMOVING .

-- Remove plenum chamber cover PLENUM CHAMBER COVER, REMOVING .

-- Remove the screws -arrows- and the cover from the Connection and Junction Box 2 -SX2-.

Fig 1: Identifying E-Box Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The number of multi-pin harness connectors -2- can deviate from the illustration depending on vehicle equipment.

Fig 2: Identifying Connection/Conjunction Box -1-, Multi-Pin Harness Connectors -2- And Housing Seal -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect all the multi-pin connectors -2-, depending on the vehicle equipment level, and remove the wiring harness together with the housing seal -1 and 3- from Connection and Junction Box 2 -SX2-.

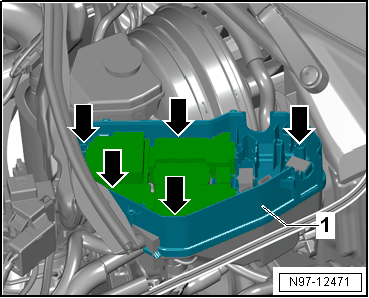

-- Remove the five bolts -arrows- and then remove the top of the Connection and Junction Box 2 -SX2- -1-.

Fig 3: NO CONTENT

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower section of Connection and Junction Box 2 -SX2- from the vehicle.
