Connection And Junction Box 2 -SX2- Inside Plenum Chamber On Left Side, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal. Note The Following:

-- Install the rubber retainers -1- and mount the lower section of Connection and Junction Box 2 -SX2-, with the rubber retainers, onto the pins on the vehicle.

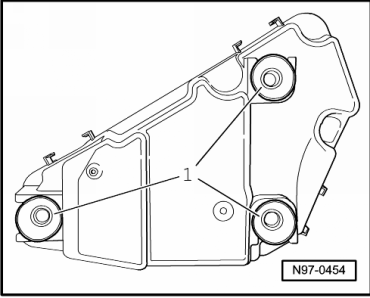

Fig 1: Identifying E-Box Securing Rubbers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The sealing boot for the wires must be installed in the guides on Connection and Junction Box 2 -SX2-.

Be careful not to get the wires caught when assembling the upper and lower sections of Connection and Junction Box 2 -SX2-.

-- Tighten The Screws On The Cover To 2.5 Nm.

Fig 2: Identifying E-Box Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
