Data Bus On Board Diagnostic Interface -J533-, Removing And Installing, RHD: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove the glove compartment. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

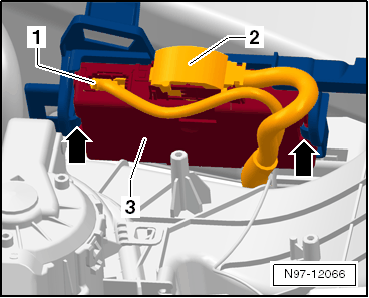

-- Push the tabs -arrows- toward the outside and remove the Data Bus On Board Diagnostic Interface -J533- -3-. Pay attention to the wires still connected.

Fig 1: NO CONTENT

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors -1- and -2-.

-- Remove the Data Bus On Board Diagnostic Interface -J533- -3-.
