Installing The 2/3 Rear Seat And The 1/3 Rear Seat
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

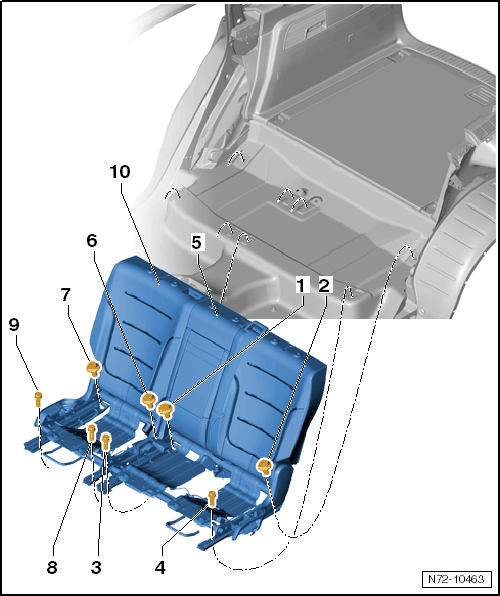

-- Lift the 2/3 section -5- into the vehicle with a second technician.
-- Install the bolt -3- but do not tighten it.
-- Install the bolt -4- but do not tighten it.
-- Secure the 2/3 rear seat with the bolts -1- and -2- (50 ± 7.5 Nm ).
-- Tighten the bolts -3- and -4- (50 + / - 7.5 Nm ).
-- Connect any connectors according to the vehicle equipment.
-- Lift the 1/3 rear seat -10- into the vehicle.
-- Install the bolt -8- but do not tighten it.
-- Install the bolt -9- but do not tighten it.
-- Secure the 1/3 rear seat with the bolts -6- and -7- (50 ± 7.5 Nm ).
-- Tighten the bolts -8- and -9- (50 ± 7.5 Nm ).
-- Connect any connectors according to the vehicle equipment.
