Pass-Through, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Fold the pass-through -5- forward.

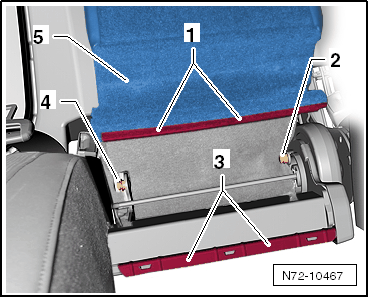

Fig 1: Pass-Through

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the clamping strip -1- from the mounting profile -3- and fold up the carpet.

-- Use a screwdriver to detach the retaining rings from the bolts -2- and -4-.

Instead of the retaining ring -4-, a fitting bolt can be installed.

-- Remove the fitting bolt -1- (18 + / - 1 Nm).

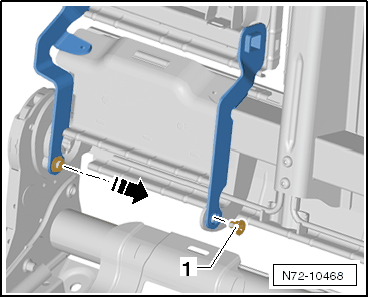

Fig 2: Pass-Through Hinges

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the pass-through to the right -arrow- and remove.
