Pass-Through Backrest Lock Cover Frame, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center headrest HEADREST, REMOVING AND INSTALLING .

-- Remove the headrest guide with the button REAR HEADREST GUIDES, REMOVING AND INSTALLING .

-- Use the :3409  to carefully detach the cover frame -1- from the latching mechanisms.

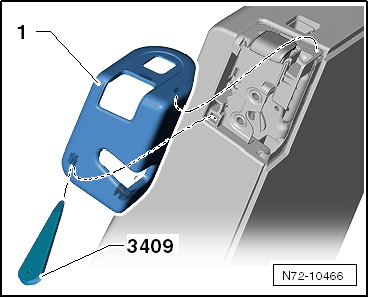

Fig 1: Pass-Through Backrest Lock Cover Frame
GWWN72-10466Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
