Backrest Release Motors, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the seat benches. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the rear seats. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the screws -1- and -2- (2 Nm  ).

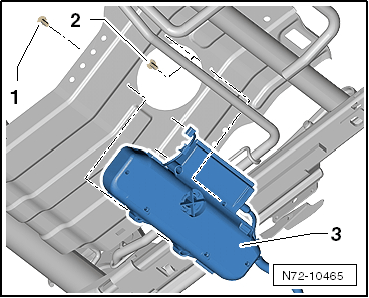

Fig 1: Seatback Release Motors
GWWN72-10465Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the motor -3- and detach the Bowden cable.
