Tunnel-Side Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the seat belt latch. Refer to FRONT SEAT BELT LATCHES, REMOVING AND INSTALLING .

-- Press the clamping pin -1- inward out of the expanding clip -2-.

-- Remove the expanding clip.

Fig 1: Clamping Pin -1- Inward Out Of Expanding Clip -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the clamping pin -2- inward out of the expanding clip -1-.

-- Remove the expanding clip.

-- Carefully pull the trim in the area of the guide pin -3- backward off of the seat.

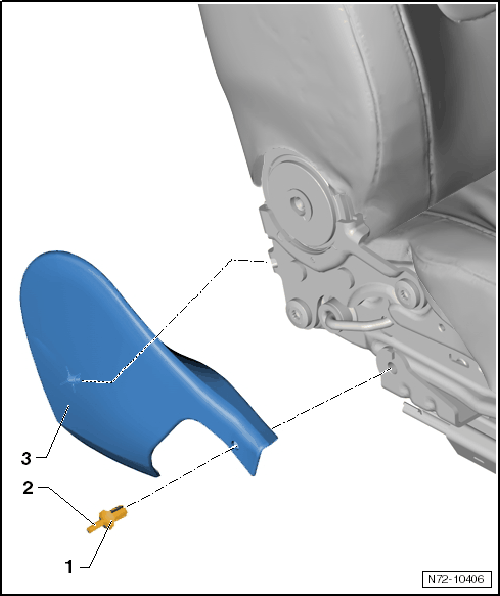

Fig 2: Guide Pin -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
