Switches, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

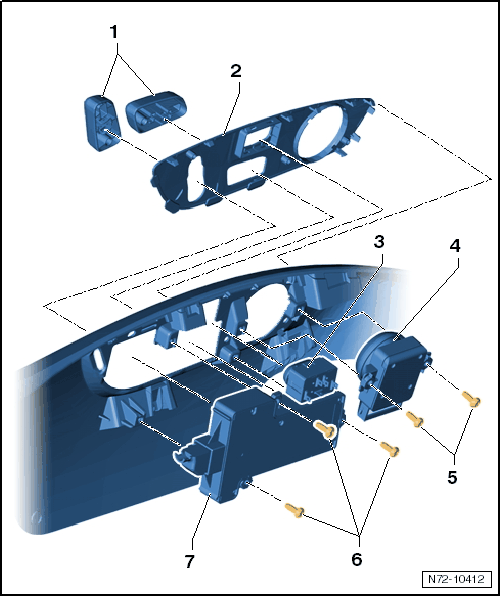

-- Use the :T10236 to loosen the button -1- from the Driver Seat Adjustment Control Head -E470- -7-.
-- Release the latching mechanisms and detach the Multicontour Driver Seat Switch -E658- -3- from the trim panel.
-- Remove the two bolts -5- (0.7 ± 0.5 Nm ) and remove the Driver Seat Lumbar Support Adjustment Switch -E176- -4- from the trim panel.
-- Remove the three bolts -6- (0.7 ± 0.5 Nm ) and remove the Driver Seat Adjustment Control Head -E470- -7- from the trim panel.
-- Remove the cover -2- from the trim as needed.
