Removing The Power Seat
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- The seat should be in its highest position.

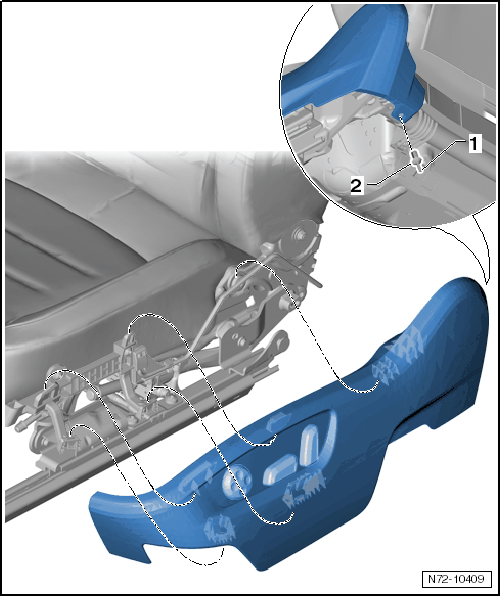

-- Press the clamping pin -1- inward and remove from the expanding clip -2-.
-- Release the tabs in the transition area to the hinged pocket on the front of the seat.
-- Pull the trim upward off of the seat.
-- Disconnect the wiring harnesses from Driver Seat Lumbar Support Adjustment Switch -E176-, the Driver Seat Adjustment Control Head -E470- and the Multicontour Driver Seat Switch -E658-.
