Removing The Manual Seat

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The seat should be in its highest position.

-- Turn backrest adjustment wheel -1- until you see a locking tab at back -arrow A-. Possibly use a flashlight.

Fig 1: Identifying Backrest Adjustment Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn backrest adjustment wheel -1- until you see a locking tab at back -arrow A-. Possibly use a flashlight.

-- Engage :3399 and pry it in direction of -arrow B-.

-- Turn backrest adjustment wheel about 120° more.

-- Engage :3399 and pry it in direction of -arrow B-.

-- Remove backrest adjustment wheel.

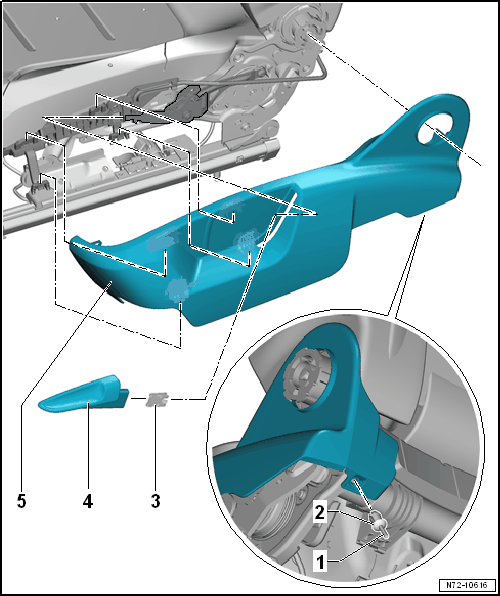

-- Press the clamping pin -1- inward and remove from the expanding clip -2-.

-- Pull the seat height adjustment handle -4- upward.

-- With a small screwdriver, press on the metal tabs for the retaining clips -3- on the inside of the adjusting lever and pull the handle -4- downward.

NOTE:

For the sake of illustration, securing clip is depicted as removed in the illustration.

-- Remove the retaining clips -3- from the adjusting lever.

-- Release the tabs in the transition area to the hinged pocket on the front of the seat.

-- Loosen the trim -5- from the seat and remove it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
