Sill-Side Trim Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The seat should be in its highest position.

-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -1-, -2-, -3- and -4-.

-- Detach the bracket from the seat.

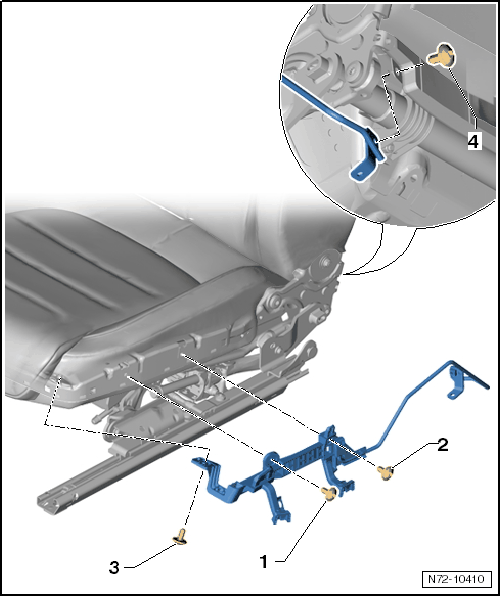

Fig 1: Locating Bracket Bolts -1-, -2-, -3- And -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
