Seat Cushion Fan, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the seat belt latch. Refer to FRONT SEAT BELT LATCHES, REMOVING AND INSTALLING .

-- Remove the tunnel-side trim. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the drawer. Refer to DRAWER, REMOVING AND INSTALLING .

-- Detach the front and side profiles -arrows- of the cover from the seat frame.

Fig 1: Identifying Front And Side Profiles -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Detach 2 additional profiles on the right side.

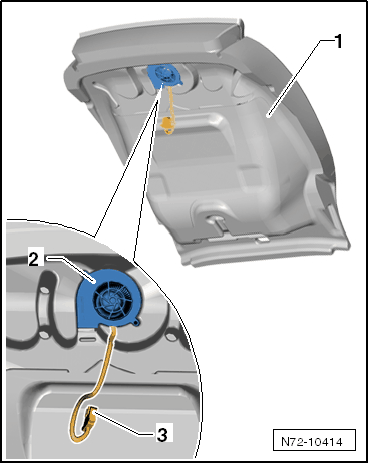

-- Disconnect the fan harness connector -3-. Tilt the cushion and cover -1- upward until the fan -2- is accessible.

Fig 2: Seat Cushion Fan & Harness

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the bonded mat off of the cushion and remove the fan.
