Manual Seat Height Adjustment Lever, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

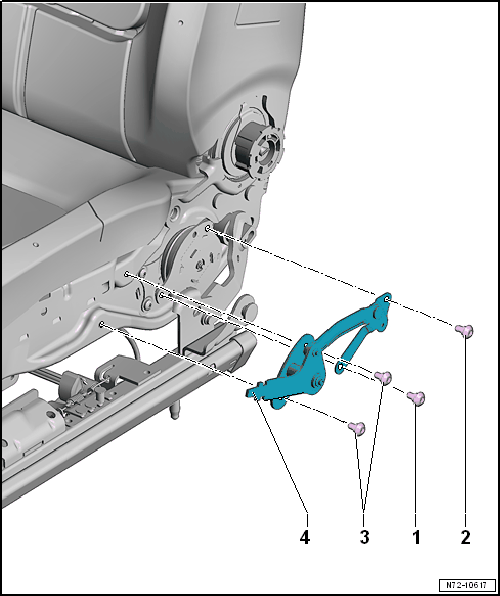

-- Attach the lever -4- to the seat.

The Assembly Sequence Is: -1-, -2- And -3-.

Tightening Specification: 8 ± 1 Nm

GWWN72-10617Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
