Headrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Basis Headrest

-- Press the button -1- all the way in and pull the head rest out of the backrest.

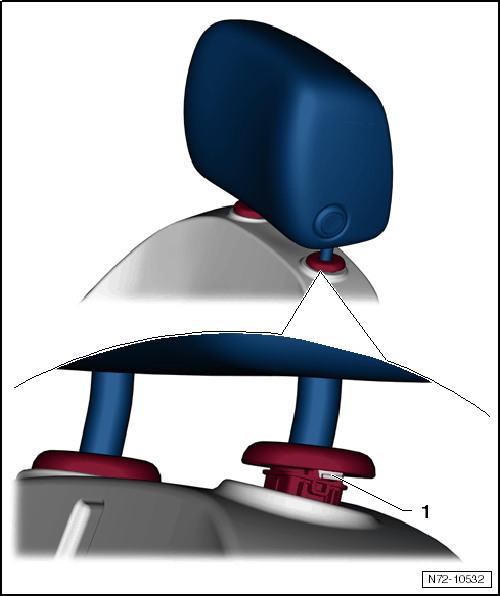

Fig 1: Head Rests Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Comfort Headrest

-- Push the cushion near the headrest guides slightly to the rear.

-- Push the locking plate -1- all the way toward the retainer on both headrest guides.

-- Remove the headrest from the backrest.

Fig 2: Headrest Remove/Install

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
